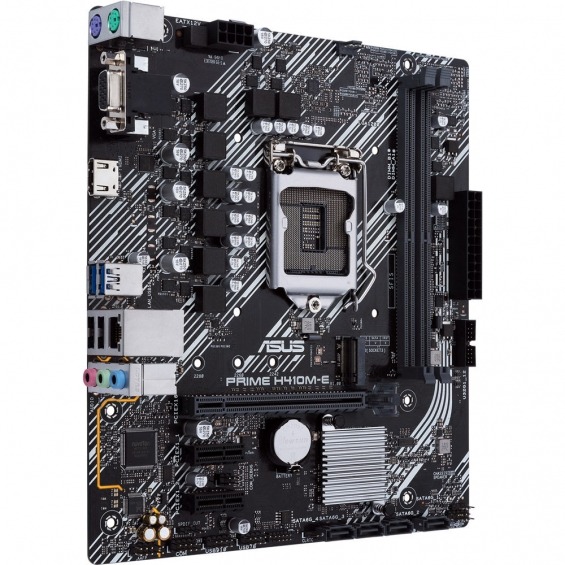

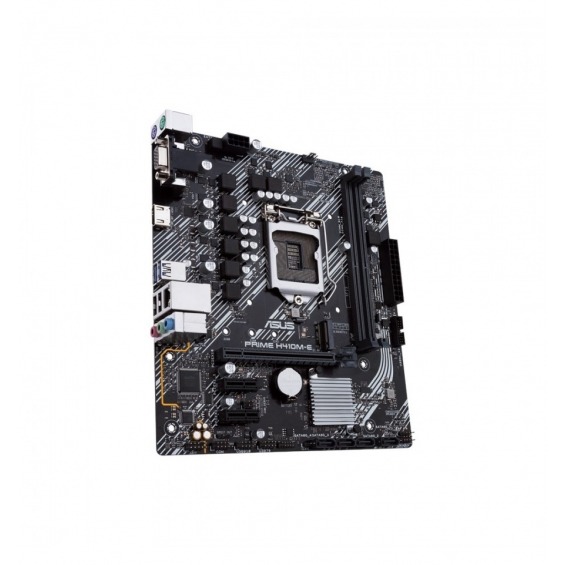

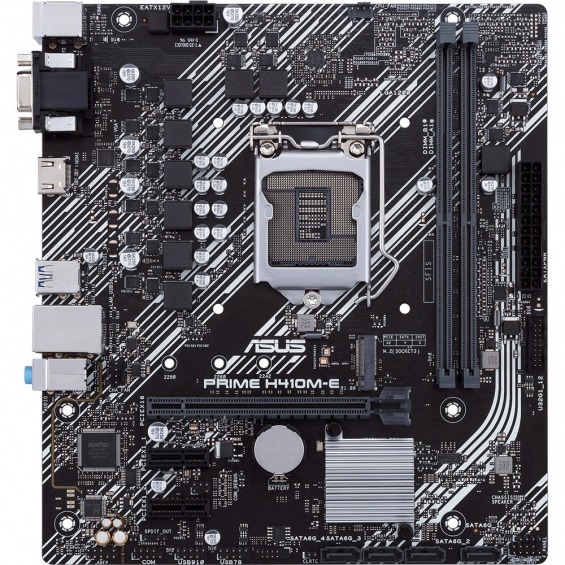

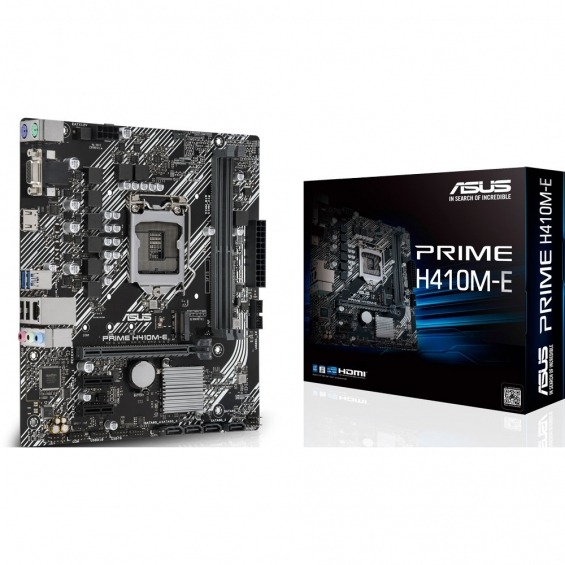

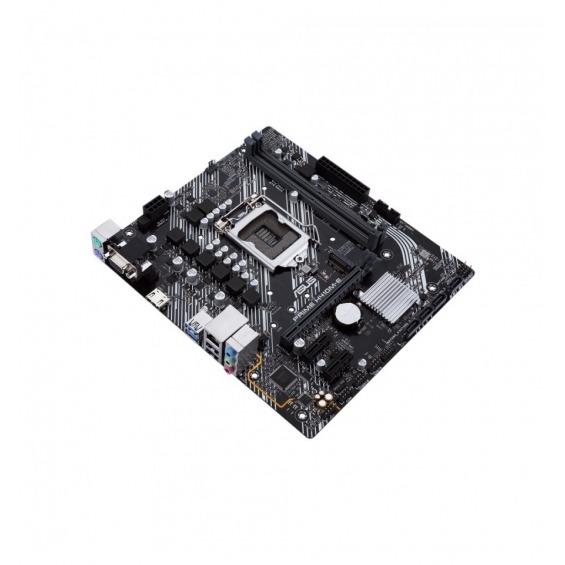

Placa Asus H410M-E
- Fabricante: Asus P/N: 90MB13H0-M0EAY0 EAN: 4718017569682 Código: 54520
75,67 €
(Impuesto incl.) Tarjeta Madre Intel® H410 (LGA 1200) mic-ATX con soporte M.2, DDR4 2933MHz, HDMI, D-Sub, puertos USB 3.2 Gen 1, SATA 6 Gbps, puerto COMSocket Intel® LGA 1200: Lista para procesadores Intel® Core ™ de 10a generación.5X Protection III: Múltiples protecciones de hardware para una protección integral.ASUS OptiMem: Cuidadoso de trazas y vías para preservar la integridad de la señal para mejorar la estabilidad de la memoria.Conectividad ultrarrápida: M.2, Ethernet de 1 Gb, USB 3.2 Gen 1 Tipo-A.
CPU
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list
- **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel® H410
Memoria
- 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem
- * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
- Integrated Graphics Processor *
- 1 x D-Sub
- 1 x HDMI 1.4b
- *Graphics specifications may vary between CPU types.
Slots de expansión
- Intel® 10th Gen Processors
- 1 x PCIe 3.0 x16 (x16 mode)
- Intel® H410 Chipset
- 2 x PCIe 3.0 x1
Almacenamiento
- Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel® H410 Chipset :
- 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
- 4 x SATA 6Gb/s port(s)
Redes
- Realtek® RTL8111H
Audio
- Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
USB
- Rear USB Port ( Total 4 )
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)
- 4 x USB 2.0 port(s)
Características especiales
- ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design

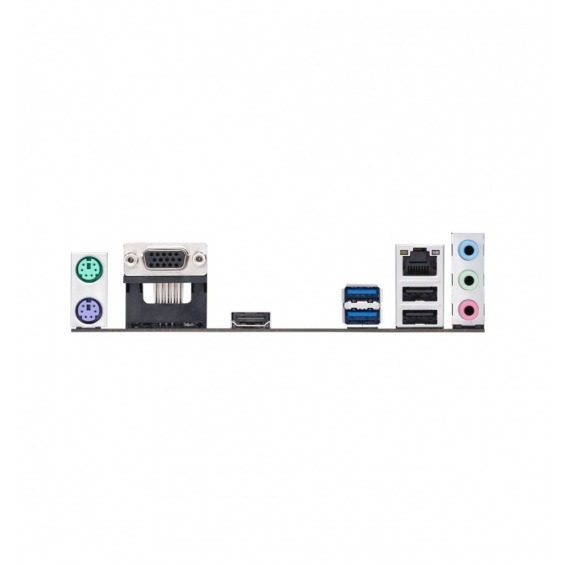

Puertos traseros
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
- 3 x Audio jack(s)
Conectores internos
- 1 x CPU Fan connector(s)
- 1 x Chassis Fan connector(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x Speaker connector
Sistema Operativo
- Windows 10 64Bits
Formato
- Micro ATX: 22.6 x 20.3 cm
-/-
