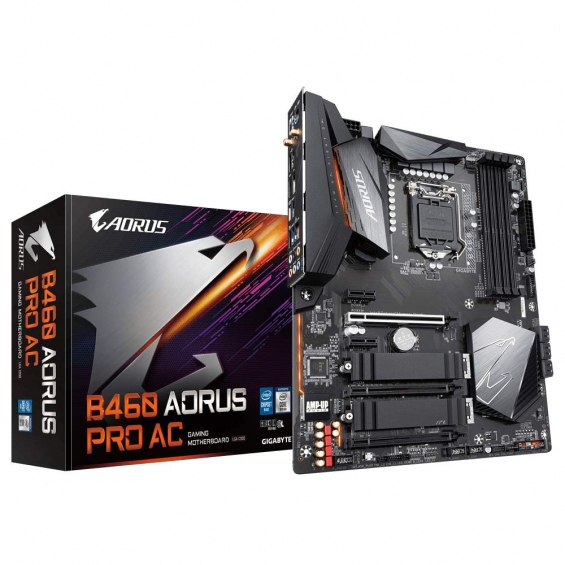

Placa Gigabyte B460 Aorus Pro AC
- Fabricante: Gigabyte P/N: GAB46APAC-00-G EAN: 4719331808907 Código: 70597
126,93 €
(Impuesto incl.) Admite procesadores Intel® Core ™ de 10a generación.Solución VRM digital directa de 8 fasesDDR4 sin búfer sin ECC de doble canal, 4 DIMMDiseño térmico avanzado con disipador térmico ampliadoSmart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOPDoble NVMe PCIe 3.0 x4 M.2 ultrarrápido con protectores térmicosIntel® 802.11ac Wave2 2T2R WIFI y BT 5LAN Intel® 2.5 GbE ultrarrápida con cFosSpeedCompatibilidad con Intel® USB 3.2 Gen2 Type-C ™Audio ALC 1220 120dB SNR HD con condensadores de audio WIMA y Nichicon MWRGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras LED direccionables y LED RGBInstalación fácil y rápida: IO Shield preinstaladoQ-Flash Plus Update BIOS sin instalar la CPU ? Memoria y tarjeta gráficaIntel® Optane ™ Memory Ready
- CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
- (Please refer to "CPU Support List" for more information.)
- Chipset
- Intel® B460 Express Chipset
- Memory
- Intel® Core™ i9/i7 processors:
- Support for DDR4 2933/2666/2400/2133 MHz
- Intel® Core™ i5/i3/Pentium®/Celeron® processors:
- Support for DDR4 2666/2400/2133 MHz
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (Please refer to "Memory Support List" for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- * Support for HDMI 1.4 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- Maximum shared memory of 512 MB
- Audio
- Realtek® ALC1220-VB codec
- * The back panel line out jack supports DSD audio.
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- LAN
- Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- Wireless Communication module
- Intel® Wi-Fi 9260
- Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
- * Actual data rate may vary depending on environment and equipment.
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
- 3 x PCI Express x1 slots
- (All of the PCI Express slots conform to PCI Express 3.0 standard.)
- Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- * Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
- Intel® Optane™ Memory Ready
- * System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
- USB
- Chipset+ASMedia® USB 3.2 Gen 2 Controller:
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Chipset+USB 2.0 Hub:
- 2 x USB 2.0/1.1 ports on the back panel
- Internal I/O Connectors
- Chipset:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 2 x Thunderbolt™ add-in card connectors
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
- Back Panel Connectors
- Chipset:
- 1 x PS/2 keyboard/mouse port
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Bundled Software
- Norton® Internet Security (OEM version)
- cFosSpeed
- Operating System
- Support for Windows 10 64-bit
- Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
-/-
