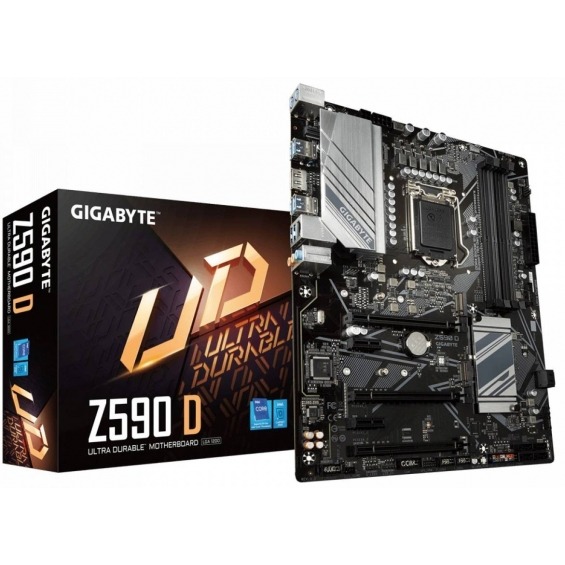

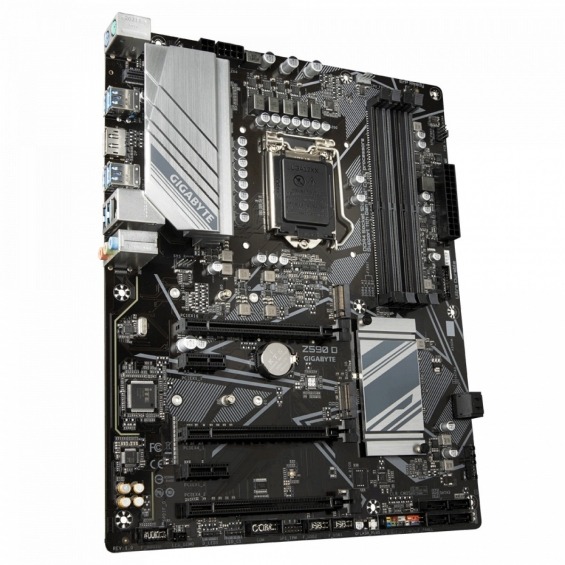

Placa Gigabyte Z590 D

Procesador

• 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

Chipset

• Intel® Z590 Express Chipset

Memoria

• Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture

Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
• 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel® Optane™ Memory Ready

Conectores USB

• 8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Conectores internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

Conectores traseros

• 1 x PS/2 mouse port
• 1 x PS/2 Keyboard port
• 1 x DisplayPort
• 6 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• ATX (30.5 x 24.4cm)
