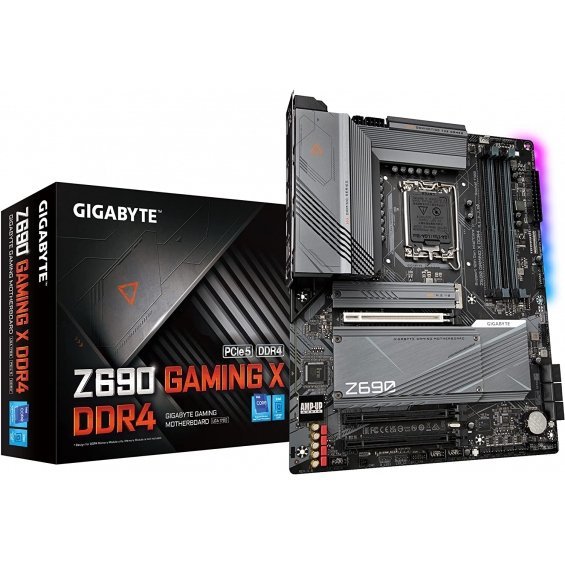

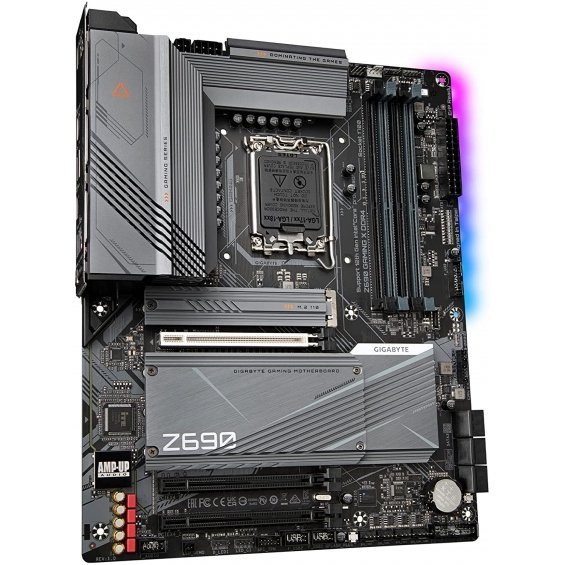

Placa Gigabyte Z690 Gaimng X
- Fabricante: Gigabyte P/N: Z690 GAMING X EAN: 4719331828455 Código: 61445
237,68 €
(Impuesto incl.) Placa madre Intel® Z690 GAMING con diseño VRM digital directo de 16 + 1 + 2 fases, diseño PCIe 5.0, diseño térmico totalmente cubierto, 4 x PCIe 4.0 M.2 con protección térmica ampliada, LAN de 2,5 GbE, audio de alta resolución de 120 dB con WIMA, USB posterior 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus; La entrega de energía más limpia y eficiente a la CPU con un mejor rendimiento térmico garantiza la estabilidad bajo altas frecuencias de CPU y cargas pesadasRealtek 8118 LAN es un chip de red amigable y de alto rendimiento para jugadores de juegos con asignación automática de ancho de banda para garantizar la máxima prioridad de red del juego o la aplicación. Puede proporcionar a los usuarios las funciones más completas y la experiencia de Internet más rápida y fluida.Las placas base H610 cuentan con conectores de alimentación ATX de 12 V y 8 pines enchapados sólidos para ofrecer una fuente de alimentación estable durante la sobrecarga de la CPU.
- CPU
- LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
- L3 cache varies with CPU
- (Please refer to "CPU Support List" for more information.)
- Chipset
- Intel® Z690 Express Chipset
- Memory
- Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- * Support for HDMI 2.0 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- * Support for DisplayPort 1.2 version and HDCP 2.3
- (Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® ALC1220-VB CODEC
- * The back panel line out jack supports DSD audio.
- High Definition Audio
- 2-channel analog output
- Support for S/PDIF Out
- 7.1-channel digital signals
- * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
- (The PCIEX4 slots conform to PCI Express 3.0 standard.)
- Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
- Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Intel® Optane™ Memory Ready
- * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
- USB
- Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 4 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Q-Flash Plus button
- 1 x Clear CMOS jumper
- ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
- Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
- * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® Gaming LAN Bandwidth Control Utility
- Operating System
- Support for Windows 10 64-bit
- Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
-/-
