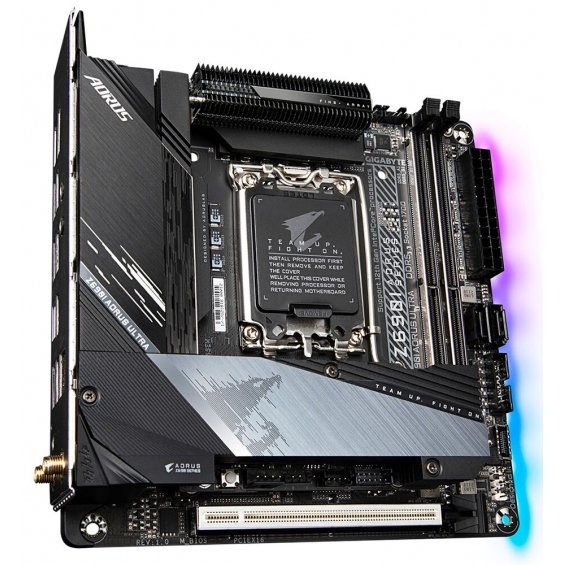

Placa Gigabyte Z690I Aorus Ultra

1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. Caché L3 varía según la CPU

* Please refer to "CPU Support List" for more information.

1. Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Arquitectura de memoria Dual Channel
4. Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
5. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
6. Soporte para módulos de memoria Extreme Memory Profile (XMP)

(Por favor, consulte la "Lista de Soporte de Memoria" para más información.)

Procesador gráfico integrado – Soporte Intel® HD Graphics

1. 1 x puerto HDMI , soportando una resolución máxima de 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.
2. 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
   * Support for DisplayPort 1.4 version and HDCP 2.3.
   * The DisplayPort does not support HDMI connection by adapter.

(Graphics specifications may vary depending on CPU support.)

Intel® Wi-Fi 6 AX201

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * La tasa de datos real puede variar según el equipo y el entorno.

CPU

1. 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset

1. 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 2 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1
Memoria Intel® Optane™
* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

Chipset

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
5. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub

1. 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG

1. 1 x conector de alimentación principal ATX 24-pin
2. 1 x conector de alimentación ATX 12V 8-pin
3. 1 x external power connector^{(Note 1)}
4. 1 x conector del ventilador de la CPU
5. 1 x conexión del ventilador para refrigeración por agua
6. 2 x cabeceras para ventilador del sistema (SYS_FAN1/SYS_FAN2^{(Note 1)})
7. 1 x addressable LED strip header^{(Note 1)}
8. 1 x RGB LED strip header
9. 2 x conectores M.2 Socket 3 (M2A_CPU(^{Note 2})/M2P_SB(^{Note 1)})
10. 2 x conector SATA 6Gb/s
11. 1 x conector del panel frontal
12. 1 x conector de audio en el panel frontal
13. 1 x conector para altavoz
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 1 x conector USB 2.0/1.1 ^{(Note 1)}
17. 1 x botón reset^{(Note 1)}
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
(Note 2) The connector is on the back of GC-Z690I BTB PLUG.
