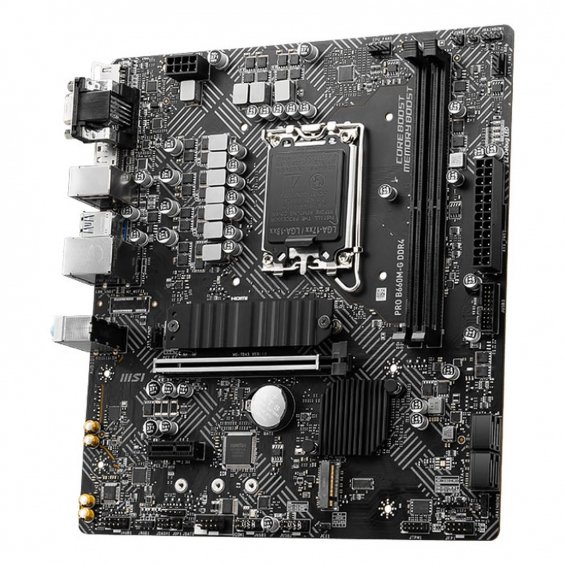

Placa Msi Pro B660M-G
- Fabricante: Msi P/N: 911-7D45-002 EAN: 4719072912475 Código: 61606
112,77 €
(Impuesto incl.) El MSI B660M-G PRO DDR4 está diseñado para albergar procesadores Intel Core en el socket LGA 1700. Permitirá el montaje de una configuración potente y versátil capaz de realizar todas las tareas. Es la solución ideal para diseñar un PC equilibrado y potente.ElMSI B660M-G PRO DDR4 está diseñado para albergarprocesadores Intel Coreen el socket LGA 1700. Permitirá el montaje de una configuración potente y versátil capaz de realizar todas las tareas. Juegos, streaming, multitarea intensiva, creación multimedia, es la solución ideal para diseñar unPC equilibrado y potente.También admite memoria RAM DDR4,tarjetas gráficas PCI-Express 4.0 16x,SATA 6 Gb/s yM.2 UnidadesPCI-E NVMe yperiféricos USB 3.0.Con altas frecuencias, consigue un alto rendimiento en los juegos. Enfréntate con confianza a tus oponentes o explora nuevos mundos con una revolucionaria arquitectura de procesador que se centra en lo importante. Los procesadores Intel de 12ª generación están simplemente diseñados para la próxima generación de juegos.
| Marca | MSI |
| Modelo | 911-7D45-002 |
| Plataforma | - M-ATX (24.4 cm x 22 cm) |
| Chipset | - Intel® B660 Chipset |
| CPU Soportados | - Admite procesadores Intel® Core™, Pentium® Gold y Celeron® de 12ª generación - Zócalo del procesador LGA1700 |
| Memoria | - 2 x DDR4, soporta hasta 64GB - Soporta ADL-s 1R 2133/2666/2933/3200 MHz - Admite el modo de doble canal - Admite memoria sin búfer ni ECC - Soporta Intel® Extreme Memory Profile (XMP) |
| Slots Expansión | - 1 x PCIe 4.0 x16 slots - 1 x PCIe 3.0 x1 slot |
| Gráficos | - 1 x DisplayPort, 1.4, 4K 60Hz - 1 x VGA, 2048x1536 @50Hz - 1 x HDMI 2.1, 4K 60Hz |
| Puertos E/S, Conectores | Conectores Internos E/S - 1 x 8-pin ATX 12V power - 4 x SATA 6Gb/s s - 2 x USB 2.0 - 1 x USB 3.2 Gen 1 5Gbps - 1 x 4-pin CPU fan - 2 x 4-pin system fan - 1 x Front panel audio - 2 x System panel - 1 x Serial port - 1 x TPM module - 1 x Chassis Intrusion - 1 x Clear CMOS jumper - 1 x JRGB - 2 x JRAINBOW - 1 x Tuning Controller Panel E/S Trasero - Keyboard / Mouse - LAN port - Audio connector - HDMI - DisplayPort - USB 2.0 - USB 3.2 Gen 1 5Gbps Type-A |
| Otras Características | Almacenamiento - 4 x SATA 6Gb/s - 2 x M.2 slots (Key M) Audio - Realtek® ALC897 Codec - 7.1-Channel High Definition Audio LAN - 1 x Realtek® RTL8125BG 2.5Gbps LAN USB - 6 x USB 3.2 Gen 1 5Gbps - 2 x USB 2.0 - 4 x USB 2.0 (internos) |
| Fecha Revisión | 11-02-2022 por MPM |
Especificaciones:
CPU
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Please go to msi.com to get the newest support status as new processors are released.
Chipset
Intel® B660 chipset
Memory
2x DDR4 memory slots, support up to 64GB 1
Supports ADL-s 1R 2133/2666/2933/3200 MHz 1
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
1x PCIe 4.0 x16 slot (from CPU)
1x PCIe 3.0 x1 slot (from B660 chipset)
Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller
Storage
4x SATA 6Gb/s ports (From B660 chipset) 1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset) 1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Technology
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B660 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
2x USB 2.0 Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
Form Factor
M-ATX Form Factor
9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
BIOS Features
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connector (support additional 4 USB ports)
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectorx
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x JRGB
2x JRAINBOW
1x Tuning Controller Connector
LED Feature
4x EZ Debug LED
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Please go to msi.com to get the newest support status as new processors are released.
Chipset
Intel® B660 chipset
Memory
2x DDR4 memory slots, support up to 64GB 1
Supports ADL-s 1R 2133/2666/2933/3200 MHz 1
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
1x PCIe 4.0 x16 slot (from CPU)
1x PCIe 3.0 x1 slot (from B660 chipset)
Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller
Storage
4x SATA 6Gb/s ports (From B660 chipset) 1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset) 1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Technology
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B660 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
2x USB 2.0 Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
Form Factor
M-ATX Form Factor
9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
BIOS Features
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connector (support additional 4 USB ports)
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectorx
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x JRGB
2x JRAINBOW
1x Tuning Controller Connector
LED Feature
4x EZ Debug LED
Connectors
- VGA
- Keyboard / Mouse
- LAN port
- Audio connector
- HDMI
- DisplayPort
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
-/-
